Wednesday 13 October 2010

CV10_02 Wexford Waterford and Cork

In July, the RV Celtic Voyager continued to survey the seabed off the coast of Wexford, Waterford and Cork. This data will be included in individual INFOMAR priority bays such as Waterford Harbour and also in the Southern Priority Area which extends from Carnsore Point, Co. Wexford westward along the south coast of Ireland. This leg was divided into two parts with the first period concentrated in an area between Hook Head and the Saltee Islands, continuing on from survey coverage achieved in 2009 on CV09_03. The Celtic Voyager has now surveyed a large portion of this area and the remaining shallow, nearshore area will be finished by the RV Keary in the future.

Overview of survey work completed by the Celtic Voyager off the Wexford coast in July with existing INFOMAR survey work shown in the hatched area.


Area of detail from the multibeam sonar data for an area of seabed SW of the Great Saltee. The is an interesting feature west of the Conningmore Rocks which is possibly an area of sediment accumulation in the lee of the rocks due tidal currents. West of this feature is a shallow area of rock outcrop known as the Red Bank.

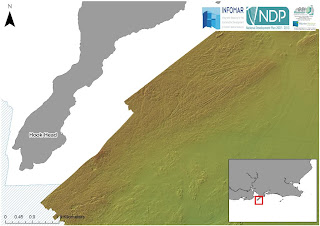

Area of detail from the multibeam sonar data for an area of rock outcrop on the seabed E of Hook Head showing complex structural geology with folding and faulting evident on the dataset. Future survey work and research may be useful in interpreting and linking these datasets to the diverse onland geology seen on Hook Head.

With the area of seabed off Wexford surveyed, operations moved down the coast to begin surveying an area that linked data acquired by the Celtic Voyager in 2008 off Cork and data from 2007 off Waterford.

Overview of survey work completed by the Celtic Voyager off the Cork and Waterford coast in July with existing INFOMAR survey work shown in the hatched area.


Plan view of multibeam sonar dataset showing the wreck of the Etal Manor on the seabed south of Hook Head. The c. 80 m Etal Manor was a British cargo steamer that was torpedoed in 1917 by German U-Boat UC-48 resulting in the deaths of 6 onboard.

Further information on the wrecks surveyed by INFOMAR is available here.

All INFOMAR data is available for free download here.
